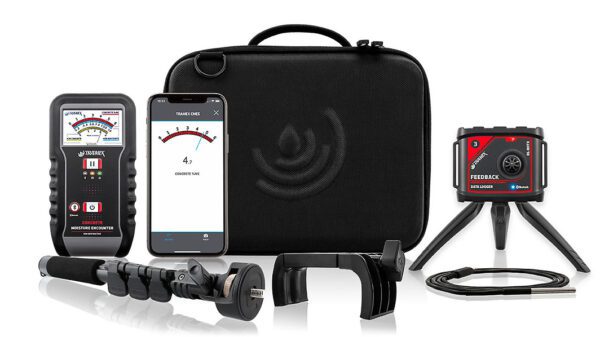

Tramex Flooring Tech Kit FTK CME5 Moisture Meter with DL-RHTX Datalogger
Select Section
Overview
The Tramex Flooring Tech Kit FTK is a compact system designed for instant, non-destructive, quantitative moisture content testing of concrete floors and ambient environmental conditions at the time of installation.
The CME5 Concrete Moisture Encounter allows for non-destructive quantitative testing of concrete moisture content using gravimetric-based measurement and comparative testing per ASTM F2659.
The DL-RHTX Ambient Feedback Datalogger is used for monitoring and time logging relative humidity, temperature, and dew point in the environment.
The Contact Temperature Probe provides surface temperature readings of the floor, helping assess dew point conditions during installation.
The system is designed for use with the Tramex Meters App, allowing GeoTagging of test results, reporting, chart creation, and data sharing via mobile devices.
KEY BENEFITS
- Instant moisture and environmental condition checks at installation
- Helps prevent flooring failure due to moisture or condensation
- Combines concrete, ambient RH, and surface temperature testing
- Improves accuracy of installation decisions
- Supports digital reporting and documentation
APPLICATIONS
- Flooring installation checks
- Concrete slab moisture assessment
- Construction site environmental monitoring
- Water damage restoration drying verification
- Pre-installation compliance testing
FEATURES
- CME5 concrete moisture meter
- Non-destructive RF moisture measurement
- DL-RHTX ambient datalogger (RH, temperature, dew point)
- Contact Temperature Probe (surface temperature)
- Bluetooth connectivity with Tramex Meters App
- Data logging, GeoTagging, reporting, and charting
KIT INCLUDES
- Tramex CME5 Concrete Moisture Encounter
- DL-RHTX Ambient Feedback Datalogger
- Contact Temperature Probe
- Extension Handle
- Tramex Meters App compatibility (mobile device not included)
SPECIFICATIONS
- Model: FTK
- Moisture testing method: Non-destructive concrete moisture testing
- Standard: ASTM F2659 compliant
- Depth of penetration: approx. 20 mm
- Concrete moisture range: 0–6%
- Gypsum reference: 0–10
- RH range: 0–100% (DL-RHTX dependent)
- Temperature range: -20°C to 70°C (probe dependent)
- Data logging: up to 100,000 entries (DL-RHTX system)
- Connectivity: Bluetooth Low Energy (via app system)
- Power: Battery operated
