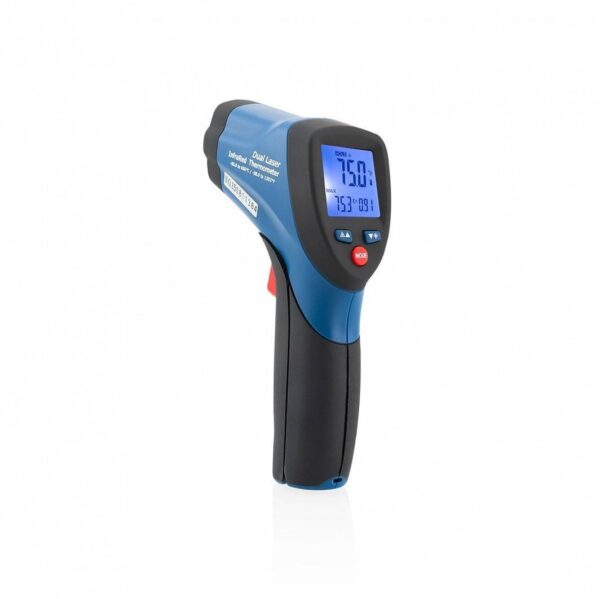

Tramex Infrared Surface Thermometer IRT2 Dual Laser Non-Contact Temperature Meter

Intro

The Tramex IRT2DP Infrared Surface Thermometer & Dew Point Detector is a handheld device combining non-contact surface temperature measurement with environmental monitoring.

It allows users to measure surface temperature, ambient temperature, relative humidity, and dew point in a single tool, making it highly effective for moisture diagnostics and condensation risk assessment.

Key Benefits

• Measure surface temperature and environmental conditions in one device
• Instantly identify condensation and dew point risk
• Non-contact measurement improves speed and safety
• Visual and audible alerts for critical conditions
• Reduces need for multiple instruments on-site

Applications / Use Cases

• Detecting condensation risk before flooring installation
• Water damage restoration diagnostics
• Building inspections and moisture assessments
• HVAC and environmental condition monitoring
• Coating and painting preparation

Features

• Dual laser targeting for accurate surface measurement
• Non-contact infrared temperature measurement
• Built-in hygrometer for RH and ambient temperature
• Dew point detection with visual (green/yellow/red) and audible alerts
• 3 display modes: RH, Dew Point, Ambient Temperature
• Automatic data hold function
• Backlit LCD display
• Pre-set emissivity of 0.95
• Fast response time (~0.15 seconds)

Why Choose This Product

The IRT2DP is designed for professionals who need more than just surface temperature. By combining infrared measurement with RH and dew point detection, it provides immediate insight into moisture conditions and condensation risk—critical for preventing flooring failures and moisture-related issues.

INCLUDED

• Infrared Surface Thermometer & Dew Point Detector (IRT2DP)
• 9V Battery

Specifications

General

• Brand: Tramex
• Model: IRT2DP
• Product Type: Infrared thermometer with hygrometer

Measurement Capabilities

• Surface temperature (infrared, non-contact)
• Ambient temperature
• Relative humidity
• Dew point temperature

Measurement Ranges

• Temperature: -50°C to 380°C
• Relative Humidity: 0 – 100% RH
• Dew Point: -30°C to 100°C

Measurement Accuracy

• Temperature: approx. ±1.5°C (range dependent)
• Humidity: ±3.5% RH (20–80% range)

Sensor / Optics

• Distance-to-Spot Ratio: 20:1
• Spectral Response: 8–14 µm
• Emissivity: Fixed at 0.95

Physical Specs

• Handheld device
• Power: 9V battery
• Operating Temperature: 0°C to 50°C

Differentiation

• Combines infrared thermometer + hygrometer in one device
• Dew point proximity alerts (visual + audible)
• Designed specifically for moisture and condensation diagnostics
• Eliminates need for separate RH meter and IR thermometer
