Moisture Meters & Monitoring

Tramex Flooring Master Kit FMK – CMEX5 & ME5 Moisture Meters with RH, Pin, Hammer Probes and Datalogger

$5,285.50

Stocks:

In Stock

Overview

Surveying RH and moisture conditions of concrete slabs and wooden floor coverings with Bluetooth and accompanying app.

The Tramex FMK is an advanced kit for instant, non-destructive quantitative moisture testing of concrete and wood flooring, as well as relative humidity and dew point testing of concrete and ambient conditions before and after floor covering installation.

The CMEX5 digital moisture meter allows non-destructive quantitative testing of concrete using gravimetric testing as a baseline and comparative testing per ASTM F2659. It also supports ambient condition measurement including relative humidity, temperature and dew point.

The kit includes Hygro-i2® RH probes for in-situ testing of concrete slabs in accordance with ASTM F2170, BS8201, BS8203 and BS5325.

The ME5 moisture meter allows moisture testing of wood and includes shallow-depth functionality to reduce substrate influence when required.

An infrared surface thermometer provides surface temperature and dew point measurement.


FMK vs FMK-X: Which Kit?

Both Tramex Flooring Master kits share the CMEX5 concrete moisture meter, DL-RHTX Feedback Datalogger, 3 x Hygro-i2® RH probes for ASTM F2170 in-situ testing, heavy-duty pin wood probe, hammer-action electrode, IRT2 infrared thermometer, calibration check salt, hole liners and extension handle in a heavy-duty Tramex case. The difference is the wood meter. This FMK includes the ME5, with a shallow signal up to 10 mm and a deep signal up to 30 mm, and a 5 to 30% wood moisture range. The Tramex Flooring Master Kit X (FMK-X) swaps in the MEX5, which adds wood species selection, specific gravity adjustment, a built-in infrared surface thermometer and pin readings.

FMK (this kit) FMK-X
Concrete meter CMEX5 CMEX5
Wood meter ME5 MEX5
Wood moisture range 5 to 30% (non-destructive) 0 to 30% MC non-destructive; pin 6 to approx. 50% MC
Shallow-depth reading Up to 10 mm (deep up to 30 mm) Up to 9 mm
Wood species / SG adjustment Not listed Yes
RH probes, datalogger, IRT2, pin and hammer probes Included Included
Bluetooth Tramex Meters App Yes Yes

Who it suits: choose the FMK if your team already runs the ME5 or mainly needs concrete slab and RH testing with a straightforward timber meter. Choose the FMK-X if you test a range of timber species and want species and SG correction on the wood meter.

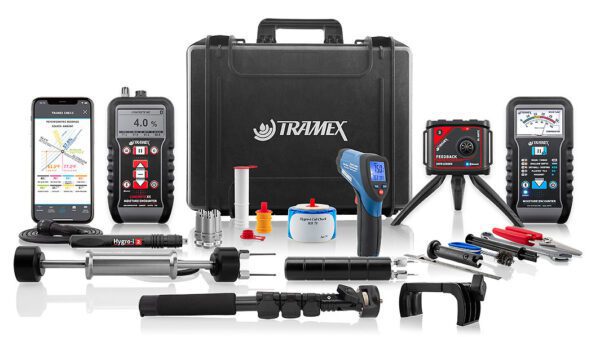

Kit Contents:

  • Concrete Moisture Encounter X5 (CMEX5)
  • Moisture Encounter 5 (ME5)
  • Free Tramex App available for Android and iOS (phone not included)
  • Feedback Datalogger (DL-RHTX)
  • 3 x Hygro-i2® Relative Humidity Probes
  • Heavy-duty pin-type wood probe
  • Hammer-action pin-type electrode
  • Infrared thermometer (IRT2)
  • Calibration check salt
  • Hole liners
  • Extension handle

Features:

  • Non-destructive concrete and wood moisture testing
  • Dual-depth and comparative moisture measurement
  • In-situ RH testing for concrete slabs (ASTM F2170)
  • Ambient RH, temperature, dew point and humidity ratio measurement
  • Bluetooth connectivity with Tramex Meters App
  • Data logging, GeoTagging, reporting and chart creation
  • Mobile viewing and remote meter screen display
  • Time-based environmental monitoring via datalogger

Specifications:

  • Model: FMK
  • Measurement types: Concrete moisture, wood moisture, RH, temperature, dew point
  • Testing method: Non-destructive + comparative + in-situ RH
  • Standards: ASTM F2659, ASTM F2170, BS8201, BS8203, BS5325
  • Connectivity: Bluetooth (Tramex Meters App)
  • Data system: Feedback Datalogger DL-RHTX
  • Accessories: RH probes, pin probes, hammer electrode, infrared thermometer
  • Compatibility: Concrete slabs, timber flooring and ambient environments
  • Storage: Heavy-duty Tramex carry case

Specifications

Brand
Tramex
Model
Tramex Flooring Master Kit FMK - CMEX5 & ME5 Moisture Meters with RH, Pin, Hammer Probes and Datalogger
SKU
FMK
Weight
5.2 kg
Dimensions
52 × 40 × 15 cm
Tags
Bluetooth enabled, moisture measurement
