Tramex Flooring Master Kit X FMK-X – CMEX5, MEX5, DL-RHTX & Hygro-i2 System
Overview
Intro:
Surveying relative humidity and moisture conditions of concrete slabs and wooden floor coverings with Bluetooth and accompanying app.
The Tramex Flooring Master Kit X is a top-tier kit designed for instant, non-destructive quantitative moisture testing of concrete and wood flooring, as well as monitoring of relative humidity and dew point conditions in concrete and ambient environments, both pre- and post-installation of floor coverings.
The kit combines multiple Tramex instruments to provide comprehensive moisture diagnostics, including gravimetric-based concrete testing, comparative testing per ASTM F2659, and in-situ RH measurement in accordance with ASTM F2170.
Key Functions:
- Non-destructive concrete moisture testing
- Wood moisture content measurement
- Ambient relative humidity, temperature, dew point and humidity ratio
- In-situ RH testing in concrete slabs
- Dual-depth and comparative moisture testing
- Long-term environmental monitoring via datalogger
FMK-X vs FMK: Which Kit?
The FMK-X and the standard Tramex Flooring Master Kit FMK share the CMEX5 concrete moisture meter, DL-RHTX Feedback Datalogger, 3 x Hygro-i2® RH probes for ASTM F2170 in-situ testing, heavy-duty pin wood probe, hammer-action electrode, IRT2 infrared thermometer, calibration check salt, hole liners and extension handle in a heavy-duty Tramex case. The FMK-X comes with the Moisture Encounter MEX5, Tramex's top wood meter: shallow-depth readings up to 9 mm, wood species selection, specific gravity adjustment, a built-in infrared surface thermometer and pin temperature correction. The FMK uses the ME5 instead.
| FMK-X (this kit) | FMK | |
|---|---|---|
| Concrete meter | CMEX5 | CMEX5 |
| Wood meter | MEX5 | ME5 |
| Wood moisture range | 0 to 30% MC non-destructive; pin 6 to approx. 50% MC | 5 to 30% (non-destructive) |
| Shallow-depth reading | Up to 9 mm | Up to 10 mm (deep up to 30 mm) |
| Wood species / SG adjustment | Yes | Not listed |
| RH probes, datalogger, IRT2, pin and hammer probes | Included | Included |
| Bluetooth Tramex Meters App | Yes | Yes |
Who it suits: the FMK-X is for flooring inspectors who test many timber species and want species and SG correction. If you mainly need concrete slab and RH testing and already use the ME5, the FMK covers the same concrete kit.

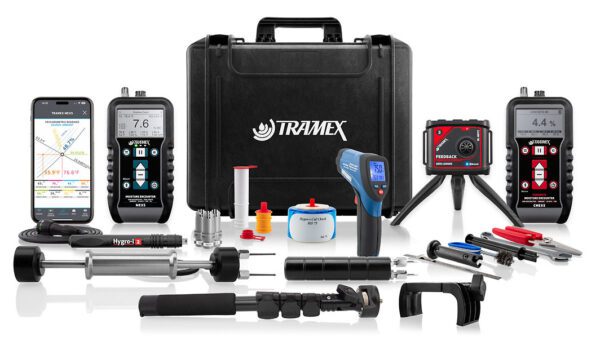

Kit Contents:
- Concrete Moisture Encounter X5 (CMEX5)
- Moisture Encounter MEX5
- Free Tramex App (Android & iOS, phone not included)
- Feedback Datalogger DL-RHTX
- 3 x Hygro-i2® Relative Humidity Probes
- Heavy-duty pin-type wood probe
- Hammer-action pin-type electrode
- Infrared thermometer (IRT2)
- Calibration check salts
- Hole liners
- Extension handle
Features:
- Non-destructive quantitative moisture testing system
- Gravimetric baseline and comparative testing (ASTM F2659)
- In-situ RH testing (ASTM F2170 compliant)
- Built-in hygrometer for ambient conditions
- Infrared surface temperature measurement
- Bluetooth connectivity with Tramex Meters App
- Data logging, reporting, GeoTagging and chart creation
- Mobile viewing of meter screen for hard-to-reach areas
- Time-based environmental monitoring via datalogger
Specifications:
- Model: FMK-X
- Measurement types: Concrete moisture, wood moisture, RH, temperature, dew point
- Testing method: Non-destructive + comparative + in-situ RH
- Standards: ASTM F2659, ASTM F2170
- Connectivity: Bluetooth (Tramex Meters App)
- Data system: DL-RHTX Feedback Datalogger
- Accessories: RH probes, pin probes, hammer electrode, infrared thermometer
- Compatibility: Concrete slabs, wood flooring, ambient environments
- Storage: Heavy-duty Tramex carry case
