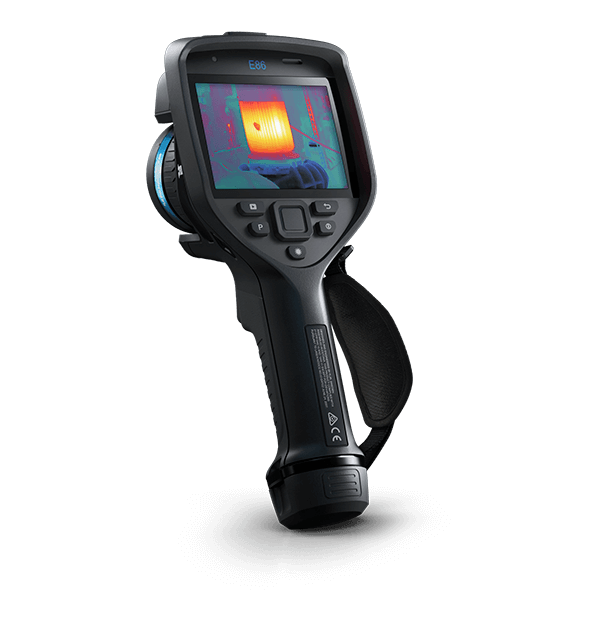

FLIR Advanced Thermal Imaging Camera E86 MSX 464 x 348 Resolution 30Hz 24degree Lens

Intro:
The FLIR E86 thermal imaging camera is a professional inspection tool designed for fast and accurate detection of thermal anomalies in electrical, mechanical and building systems, featuring high resolution imaging and advanced analysis functions.

Key Benefits:

• Improves detection of hot spots and hidden faults in complex systems
• Delivers high clarity thermal imaging with MSX and UltraMax enhancement
• Supports efficient inspection of large and multi-site environments
• Enables structured workflows with onboard inspection route planning
• Provides secure image capture, storage and transfer options

Applications:

• Electrical system fault detection and thermal analysis
• Mechanical equipment condition monitoring
• Building envelope and moisture inspection
• Industrial preventative maintenance programs
• Large facility and asset inspection surveys

Features:

• 464 x 348 pixel thermal IR resolution
• Field of view options (24 degree lens): 24 degree x 18 degree
• Thermal sensitivity: <40 mK at 24 degree lens at 30°C (86°F)
• Additional thermal sensitivity ranges: <30 mK (42 degree), <40 mK (80 degree), <50 mK (14 degree) at 30°C
• Accuracy: ±2°C (±3.6°F) or ±2% of reading
• 5 MP digital camera with built-in LED photo and video lamp (disabled when 80 degree lens is used)
• 4 inch 640 x 480 pixel touchscreen LCD with auto-rotation
• Image storage modes: infrared, visual, MSX, picture-in-picture, gallery
• Standard JPEG image format with measurement data included
• Infrared time lapse recording from 10 seconds to 24 hours
• Voice recording up to 60 seconds per image or video via built-in microphone or Bluetooth
• Communication interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
• Video output: DisplayPort over USB Type-C
• METERLiNK enabled
• Removable SD card storage
• Rechargeable Li-ion battery system
• Battery operating time greater than 2.5 hours at 25°C under typical use
• Operating temperature range: -15 to 50°C (5 to 122°F)
• Storage temperature range: -40 to 70°C (-40 to 158°F)
• Safety certification: EN/UL/CSA/PSE 60950-1
• FLIR Inspection Route enabled for structured survey workflows

Why Choose This Product:
Selected for professional-grade thermal diagnostics where high resolution imaging, advanced measurement tools and reliable field performance are required for accurate inspection and reporting.

SPECIFICATIONS:

• IR Resolution: 464 x 348 pixels
• Field of View (24 degree lens): 24 degree x 18 degree
• Thermal Sensitivity/NETD: <40 mK at 30°C (86°F) for 24 degree lens
• Additional Thermal Sensitivity Ranges: <30 mK (42 degree), <40 mK (80 degree), <50 mK (14 degree) at 30°C
• Accuracy: ±2°C (±3.6°F) or ±2% of reading
• Digital Camera: 5 MP with built-in LED photo/video lamp (disabled when 80 degree lens used)
• Display: 4 inch 640 x 480 pixel touchscreen LCD with auto-rotation
• Storage Media: Removable SD card
• Image Format: Standard JPEG with measurement data included
• Image Storage Modes: Infrared, visual, MSX, picture-in-picture, gallery
• Time Lapse: 10 seconds to 24 hours (infrared)
• Voice Recording: Up to 60 seconds per image or video via built-in mic or Bluetooth
• Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
• Video Output: DisplayPort over USB Type-C
• Battery Type: Rechargeable Li-ion battery
• Battery Operating Time: >2.5 hours at 25°C (68°F) under typical use
• Operating Temperature Range: -15 to 50°C (5 to 122°F)
• Storage Temperature Range: -40 to 70°C (-40 to 158°F)
• Safety: EN/UL/CSA/PSE 60950-1
• FLIR Inspection Route: Enabled in camera
• Lens Type: 24 degree
