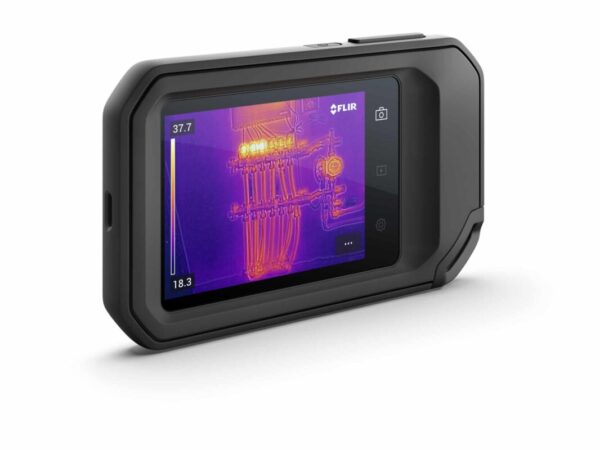

FLIR Thermal Imaging Camera C3-X Compact WiFi 128 x 96 Resolution

Intro:
The FLIR C3 X is a compact professional thermal imaging camera designed for building inspection, electrical diagnostics and maintenance work. It combines thermal imaging, visual camera and MSX enhancement with WiFi connectivity for instant reporting and cloud storage.

Key Benefits:

• Identifies hidden electrical, HVAC and moisture faults quickly
• Improves inspection accuracy with MSX image enhancement
• Enables instant cloud upload and remote sharing via WiFi
• Simplifies documentation with integrated reporting tools
• Pocket sized design for fast on site inspections

Applications:

• Electrical panel and component inspection
• HVAC system diagnostics and energy loss detection
• Water damage and moisture intrusion assessment
• Building envelope and insulation checks
• Preventative maintenance in residential and commercial assets

Features:

• Thermal resolution 128 x 96 pixels
• Thermal sensitivity NETD less than 70 mK
• Field of view 53.6 degrees
• 5 megapixel visual camera with MSX overlay
• Picture in picture and infrared image modes
• Focus free operation for fast use
• Temperature range minus 20°C to 300°C
• Accuracy ±3°C or ±5.5°F and ±3% above 100°C
• 8 to 14 µm spectral range
• Image frequency 8.7 Hz
• Internal storage for more than 5000 images
• WiFi connectivity 2.4 and 5 GHz with FLIR Ignite cloud integration
• USB C charging and data transfer
• Battery life up to 4 hours
• Charging time approximately 2 hours
• Dimensions 138 x 84 x 24 mm
• Weight 0.52 kg packaged
• Pocket form factor with rugged PC ABS aluminium housing
• LED video lamp for low light inspection

Why Choose This Product:
Ideal for technicians needing an affordable, portable thermal inspection tool with cloud reporting, suitable for fast diagnostics and professional documentation in the field.

SPECIFICATIONS:

• Thermal resolution: 128 x 96 pixels
• Thermal sensitivity: less than 70 mK NETD
• Field of view: 53.6 degrees
• Visual camera: 5 MP
• Image modes: infrared, visual, MSX, picture in picture
• Temperature range: minus 20°C to 300°C
• Accuracy: ±3°C (±5.5°F) and ±3% above 100°C
• Spectral range: 8 to 14 µm
• Focus: focus free
• Minimum focus distance: thermal 0.1 m, MSX 0.3 m
• Image frequency: 8.7 Hz
• Display resolution: 640 x 480 pixels
• Storage: internal memory plus FLIR Ignite cloud
• Image capacity: more than 5000 images
• Connectivity: WiFi 802.11 a/ac/b/g/n, Bluetooth PAN, USB 2.0 Type C
• Battery capacity: 1800 mAh
• Battery life: up to 4 hours
• Charging time: approximately 2 hours
• Charging method: USB C
• Voltage: 3.7 V
• External power: 5 V USB C
• Dimensions: 138 x 84 x 24 mm
• Packaging weight: 0.52 kg
• Housing material: PC ABS with TPE and aluminium
• Operating form factor: pocket
