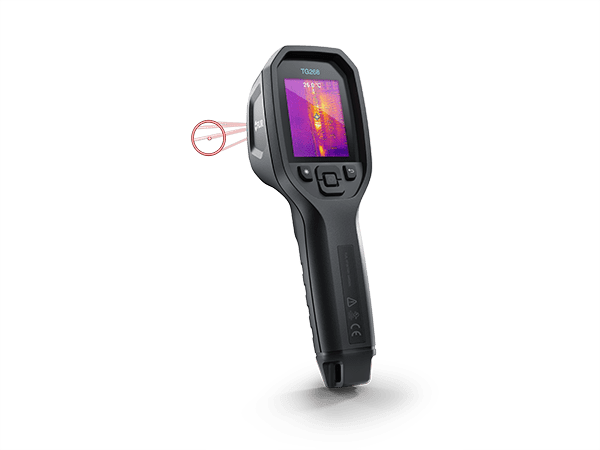

FLIR Spot Thermal Camera TG268 160 x 120 Resolution 9Hz

Intro:
The FLIR TG268 is a professional spot thermal imaging camera designed for fast, accurate temperature diagnostics. It combines 160 x 120 thermal imaging with MSX visual enhancement and a Type K thermocouple for both non-contact and contact temperature measurement in one rugged handheld tool.

Key Benefits:

• Identifies thermal anomalies quickly using infrared imaging and MSX detail enhancement
• Provides both non-contact and contact temperature measurement options
• Improves targeting accuracy with Class 1 bullseye laser indicator
• Expands diagnostic capability with Super Resolution imaging up to 320 x 240
• Supports fast inspection workflows with simple focus-free operation

Applications:

• Electrical fault detection and maintenance inspections
• HVAC system diagnostics and airflow analysis
• Mechanical equipment monitoring
• Building envelope and insulation checks
• Industrial process temperature verification

Features:

• 160 x 120 IR resolution with Super Resolution up to 320 x 240
• MSX image enhancement for clearer visual detail
• 7.5 to 14 µm spectral range uncooled microbolometer detector
• 57° x 44° field of view
• Non-contact infrared and contact Type K thermocouple measurement
• Focus free operation with fixed optical system
• 2.4 inch colour LCD display (320 x 240 resolution)
• 8 GB internal storage with JPEG image saving and spot temperature data
• Bluetooth and USB Type C connectivity
• METERLiNK compatibility for data integration
• Non-radiometric video recording and time lapse function
• Integrated laser for measurement targeting
• Rechargeable lithium ion battery with up to 5 hours runtime
• Rugged pistol grip form factor

Why Choose This Product:
The TG268 is ideal for technicians requiring a compact, reliable thermal inspection tool that combines imaging, spot measurement and thermocouple input for accurate diagnostics across electrical, mechanical and building systems.

SPECIFICATIONS:

• IR Resolution: 160 x 120
• Super Resolution: 320 x 240
• Thermal Sensitivity NETD: <70 mK
• Accuracy:
  • ±2.5% or ±2.5°C (0°C to 50°C and 100°C to 400°C)
  • ±3% or ±3°C (-25°C to 0°C)
• Object Temperature Range: -25°C to 400°C
• Field of View: 57° x 44°
• Image Modes: MSX, visual with temperature reading
• Display: 320 x 240, 2.4 inch colour LCD
• Image Frequency: 8.7 Hz
• Spectral Range: 7.5 to 14 µm
• Detector Type: Focal plane array uncooled microbolometer
• Detector Pitch: 12 µm
• Focus: Focus free
• Minimum Focus Distance: 0.3 m
• Minimum Measurement Distance: 0.26 m
• Laser: Class 1
• Colour Palettes: Iron, Rainbow, White hot, Black hot, Arctic, Lava
• Storage Media: 8 GB internal memory
• Image Format: JPEG with spot temperature data
• Interface: USB 2.0, Bluetooth
• USB Type: USB Type C data transfer and power
• METERLiNK: Yes
• Time Lapse: Yes
• Video: Non-radiometric IR recording supported
• Battery Type: Rechargeable lithium ion battery
• Battery Voltage: 3.7 V
• Battery Runtime: 5 hours scanning, 4.5 hours with laser on
• Charging Time: 3 hours to 90%, 4 hours to 100%
• Charging Temperature: 0°C to 45°C
• Dimensions: 210 x 64 x 81 mm
• Weight: 0.394 kg including battery
• Form Factor: Pistol grip
• Accessories Included: Wrist strap lanyard, pouch, USB Type C cable, Type K thermocouple, printed documentation
