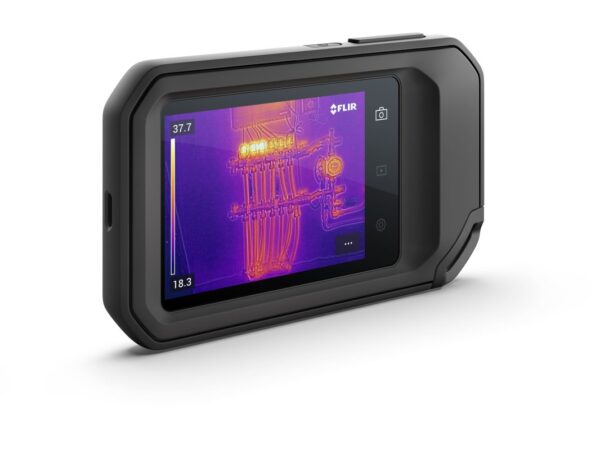

FLIR Thermal Imaging Camera C5 Compact WiFi 160 x 120 Resolution

Intro:
The FLIR C5 is a compact professional thermal imaging camera designed for fast inspection of electrical systems, HVAC faults and building defects. It combines a 160 x 120 thermal sensor with MSX enhancement and WiFi cloud connectivity for instant reporting and data storage.

Key Benefits:

• Quickly detects hidden electrical, HVAC and moisture related faults
• Improves fault identification with MSX image overlay
• Enables instant cloud upload and remote sharing via FLIR Ignite
• Simplifies reporting with visual and thermal image capture
• Portable pocket sized design for field inspections

Applications:

• Electrical panel diagnostics and fault detection
• HVAC system performance and air leak inspection
• Water ingress and moisture damage assessment
• Building envelope and insulation testing
• Preventative maintenance and asset inspection

Features:

• Thermal resolution 160 x 120 pixels
• Thermal sensitivity less than 70 mK NETD
• Temperature range minus 20°C to 400°C
• Accuracy ±3°C or ±5.5°F (0°C to 100°C) and ±3% (100°C to 400°C)
• 5 megapixel visual camera
• MSX image enhancement with visual detail overlay
• Picture in picture and infrared imaging modes
• 8 to 14 µm spectral range
• Capacitive touchscreen interface
• Fixed focus operation
• Image storage via internal memory and FLIR Ignite cloud
• WiFi connectivity for instant upload and sharing
• LED flashlight for low light inspections
• Battery life up to 4 hours continuous use
• USB C charging system with 2 hour full charge time
• External power support 5 V USB C
• Dimensions 138 x 84 x 24 mm
• Pocket form factor for portable field use

Why Choose This Product:
Ideal for technicians who need a reliable entry level thermal imaging solution with cloud reporting, fast diagnostics and simple operation for everyday inspection work.

SPECIFICATIONS:

• Thermal resolution: 160 x 120 pixels
• Thermal sensitivity: less than 70 mK NETD
• Temperature range: -20°C to 400°C
• Accuracy: ±3°C (0°C to 100°C), ±3% (100°C to 400°C)
• Visual camera: 5 MP
• Image modes: infrared, visual, MSX, picture in picture
• Spectral range: 8 to 14 µm
• Focus: fixed
• Interface: capacitive touchscreen
• Connectivity: WiFi, FLIR Ignite cloud integration
• Storage: internal memory plus cloud storage
• Power: rechargeable lithium ion battery
• Battery life: up to 4 hours
• Charging time: approximately 2 hours
• Charging method: USB C (1 A)
• External power: 5 V USB C
• Dimensions: 138 x 84 x 24 mm
• Operating form factor: pocket
• Measurement correction: emissivity, reflected apparent temperature, atmospheric compensation
